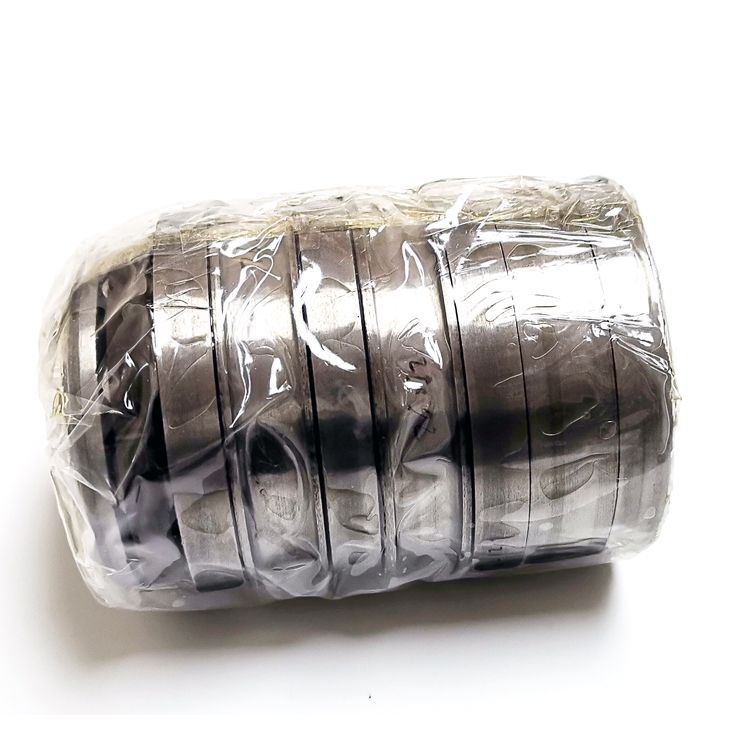

Twin screw extruder gearbox bearing

Tandem thrust cylindrical roller bearings have the characteristics of small radial section size, compact structure, large axial load capacity, uniform load of each row of rollers, wear resistance, low vibration noise and long service life, etc., which are ideal screw spindle bearings for parallel screw extruders.

There are three main types of tandem thrust cylindrical roller bearings:

1, basic type tandem thrust cylindrical roller bearings, is through the elastic spacer will be the shaft ring, race and roller-cage assembly back to the connection. This type of bearing is separable structure, parts can be disassembled, use must be in accordance with the serial number provided by our company carefully installed, disassembled. nbsp;

2, with shaft type tandem thrust cylindrical roller bearing, is a variant structure bearing, in the basic type tandem thrust cylindrical roller bearing bore through a shaft, and elastic lock ring will be fixed on the shaft. This type of bearing parts can not be separated, the use of the overall assembly and disassembly, very convenient.

3, with sleeve type tandem thrust cylindrical roller bearings, in the basic type of tandem thrust cylindrical roller bearings outside the sleeve, the use of the overall loading and unloading.
